Repository

The Repository pattern is a Gateway pattern that abstracts data access logic. It enables inner layers, such as the Application Layer in Clean Architecture, to access domain objects through a collection-like interface.

The Application Layer can add a domain object to the Repository or load domain objects based on specific criteria. The Repository pattern hides database interactions behind the scenes.

The Repository pattern is very similar to the Data Access Object (DAO) pattern, except that it operates exclusively with Domain Models.

Example

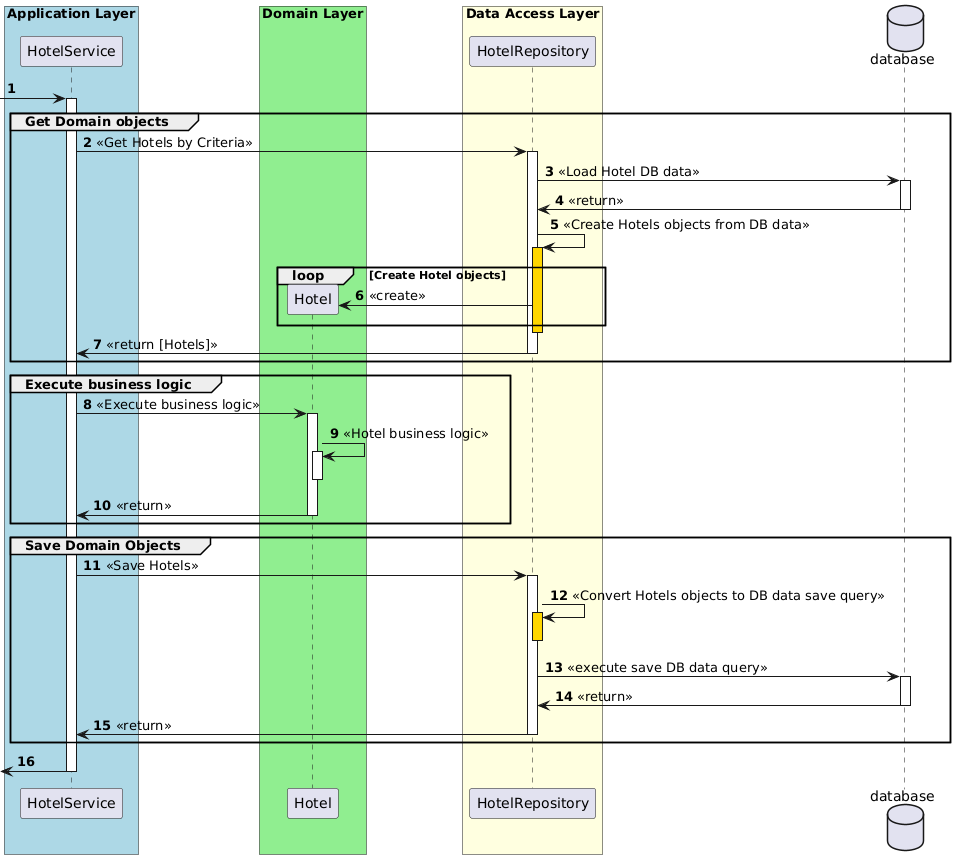

@startuml autonumber box "Application Layer" #LightBlue participant HotelService end box box "Domain Layer" #LightGreen participant Hotel end box box "Data Access Layer" #LightYellow participant HotelRepository end box database database

[->HotelService ++

group Get Domain objects HotelService -> HotelRepository ++ : <> HotelRepository -> database ++ : <> HotelRepository <- database -- : <> HotelRepository -> HotelRepository ++ #gold: <> loop Create Hotel objects HotelRepository -> Hotel ** : <> end deactivate HotelRepository HotelService <- HotelRepository -- : <<return [Hotels]>> deactivate HotelRepository end

group Execute business logic HotelService -> Hotel ++ : <> Hotel -> Hotel ++-- : <> HotelService <- Hotel -- : <> end

group Save Domain Objects HotelService -> HotelRepository ++ : <> HotelRepository -> HotelRepository ++ #gold: <> deactivate HotelRepository HotelRepository -> database ++ : <> HotelRepository <- database -- : <> HotelService <- HotelRepository -- : <> end

deactivate HotelRepository

[<-HotelService deactivate HotelService

deactivate database @enduml

namespace ApplicationLayer {
    using DomainLayer;
    public class HotelService(IHotelRepository hotelRepository)
    {
        public async Task ChangeHotelsNameAsync(string name, string newName)
        {
            // Get Domain objects
            var hotels = await hotelRepository.GetByNameAsync(name);

            // Execute Domain logic
            foreach (var hotel in hotels)
            {
                hotel.ChangeName(newName);
            }

            // Save Domain objects
            foreach (var hotel in hotels)
            {
                await hotelRepository.UpdateAsync(hotel);
            }
        }
    }
}

namespace DomainLayer
{
    public class Hotel
    {
        public int Id { get; set; }

        public string Name { get; set; }

        public string Address { get; set; }

        public decimal PricePerNight { get; set; }

        public int Stars { get; set; }

        public void ChangeName(string name)
        {
            if (string.IsNullOrWhiteSpace(name))
            {
                throw new ArgumentException("Name cannot be empty");
            }

            Name = name;
        }
    }

    public interface IHotelRepository
    {
        Task<IEnumerable<Hotel>> GetAllAsync();

        Task<IEnumerable<Hotel>> GetByNameAsync(string name);

        Task<IEnumerable<Hotel>> GetHotelsByPriceRangeAsync(decimal minPrice, decimal maxPrice);

        Task<Hotel?> TryGetByIdAsync(int id);

        Task<int> AddAsync(Hotel hotel);

        Task<int> UpdateAsync(Hotel hotel);

        Task<int> DeleteAsync(int id);
    }
}

namespace DataAccessLayer
{
    using Dapper;
    using DomainLayer;
    using System.Collections.Generic;
    using System.Data;
    using System.Threading.Tasks;


    public class HotelRepository(IDbConnection connection) : IHotelRepository
    {
        public async Task<IEnumerable<Hotel>> GetAllAsync()
        {
            const string sql = "SELECT Id, Name, Address, PricePerNight, Stars FROM Hotels";

            using var multi = await connection.QueryMultipleAsync(sql);

            return multi.Read<Hotel>();
        }
        public async Task<IEnumerable<Hotel>> GetByNameAsync(string name)
        {
            const string sql = "SELECT Id, Name, Address, PricePerNight, Stars FROM Hotels WHERE Name LIKE @Name";

            return await connection.QueryAsync<Hotel>(sql, new { Name = name });
        }

        public async Task<IEnumerable<Hotel>> GetHotelsByPriceRangeAsync(decimal minPrice, decimal maxPrice)
        {
            const string sql = @"
            SELECT Id, Name, Address, PricePerNight, Stars
            FROM Hotels
            WHERE PricePerNight >= @MinPrice AND PricePerNight <= @MaxPrice";

            return await connection.QueryAsync<Hotel>(sql, new { MinPrice = minPrice, MaxPrice = maxPrice });
        }

        public async Task<Hotel?> TryGetByIdAsync(int id)
        {
            const string sql = "SELECT Id, Name, Address, PricePerNight, Stars FROM Hotels WHERE Id = @Id";

            return await connection.QueryFirstOrDefaultAsync<Hotel>(sql, new { Id = id });
        }

        public async Task<int> AddAsync(Hotel hotel)
        {
            const string sql = @"
            INSERT INTO Hotels (Name, Address, PricePerNight, Stars)
            VALUES (@Name, @Address, @PricePerNight, @Stars);
            SELECT CAST(SCOPE_IDENTITY() as int)";

            return await connection.QuerySingleAsync<int>(sql, hotel);
        }

        public async Task<int> UpdateAsync(Hotel hotel)
        {
            const string sql = @"
            UPDATE Hotels
            SET Name = @Name, Address = @Address, PricePerNight = @PricePerNight, Stars = @Stars
            WHERE Id = @Id";

            return await connection.ExecuteAsync(sql, hotel);
        }

        public async Task<int> DeleteAsync(int id)
        {
            const string sql = "DELETE FROM Hotels WHERE Id = @Id";

            return await connection.ExecuteAsync(sql, new { Id = id });
        }
    }

}

DataMapper + Repository

The Data Mapper pattern can significantly simplify the implementation of the Repository pattern.

Instead of handling the intricate details of mapping data between database rows and domain objects within the Repository, the Data Mapper takes on this responsibility.
This makes the Repository's methods cleaner, more focused on business logic, and easier to understand.

On the other hand, without a Data Mapper, the Repository can utilize stored procedures to improve performance.

• EF Core DbContext by itself implements both the Repository and the Unit of Work patterns. Custom implementation of Repository might be redundant.

namespace ApplicationLayer {
    using DomainLayer;
    public class HotelService(IHotelRepository hotelRepository)
    {
        public async Task ChangeHotelsNameAsync(string name, string newName)
        {
            // Get Domain objects using EF Core
            var hotels = await hotelRepository.GetByNameAsync(name);

            // Execute Domain logic
            foreach (var hotel in hotels)
            {
                hotel.ChangeName(newName);
            }

            // Saves Domain objects
            foreach (var hotel in hotels)
            {
                await hotelRepository.UpdateAsync(hotel);
            }
        }
    }
}

namespace DataAccessLayer
{
    using Dapper;
    using DomainLayer;
    using Microsoft.EntityFrameworkCore;
    using System.Collections.Generic;
    using System.Data;
    using System.Threading.Tasks;


    public class HotelRepository(HotelDbContext context) : IHotelRepository
    {
        public async Task<IEnumerable<Hotel>> GetByNameAsync(string name)
        {
            return await context.Hotels.Where(h => h.Name.Contains(name)).ToListAsync();
        }

        public async Task<IEnumerable<Hotel>> GetHotelsByPriceRangeAsync(decimal minPrice, decimal maxPrice)
        {
            return await context.Hotels.Where(h => h.PricePerNight >= minPrice && h.PricePerNight <= maxPrice).ToListAsync();
        }

        public async Task<int> UpdateAsync(Hotel hotel)
        {
            context.Hotels.Update(hotel);

            return await context.SaveChangesAsync();
        }
    }

    public class HotelDbContext : DbContext
    {
        public HotelDbContext(DbContextOptions<HotelDbContext> options) : base(options) { }

        public DbSet<Hotel> Hotels { get; set; }
    }
}

Repository Criteria

Each Repository method accepts Criteria that guide the execution of database operations.
Criteria are the set of conditions or specifications used to filter or query data within the repository.

Criteria can be implemented in various ways, depending on the specific needs and complexity of the application.

Criteria: Simple properties

For basic filtering, can be used simple properties or parameters in the repository methods.

public interface IHotelRepository
{
    Task<IEnumerable<Hotel>> GetByNameAsync(string name);

    Task<IEnumerable<Hotel>> GetHotelsByPriceRangeAsync(decimal minPrice, decimal maxPrice);
}

Criteria: Expression Trees

For more complex filtering, can be use expression trees to dynamically build and apply filtering logic.
This provides greater flexibility and allows for more advanced querying capabilities.

namespace ApplicationLayer {

   public class HotelService(IHotelRepository hotelRepository)
   {
       public async Task ChangeHotelsNameAsync(string name, string newName)
       {
           // Get Domain objects using EF Core
           var hotels = await hotelRepository
               .GetHotelsByExpressionAsync(hotel => hotel.Stars >= 4 && hotel.Name == name);

           // ...

       }
   }
}

namespace DataAccessLayer
{
   public class HotelRepository(HotelDbContext context) : IHotelRepository
   {
       public async Task<IEnumerable<Hotel>> GetHotelsByExpressionAsync(Expression<Func<Hotel, bool>> expression)
       {
           return await context.Hotels.Where(expression).ToListAsync();
       }
   }
}

Criteria: Specification Pattern

The Specification pattern is a dedicated design pattern that encapsulates complex query criteria into reusable objects.

The Specification Pattern significantly improves the reusability of the business logic and the maintainability of the code.

namespace ApplicationLayer {
    using DomainLayer;
    public class HotelService(IHotelRepository hotelRepository)
    {
        public async Task ChangeHotelsNameAsync(string name, string newName)
        {
            HotelsWithMoreThanThreeStarsAndNameSpecification specification = new(name);

            // Get Domain objects using EF Core
            var hotels = await hotelRepository
                .GetHotelsBySpecificationAsync(specification);


            // Execute Domain logic
            foreach (var hotel in hotels)
            {
                hotel.ChangeName(newName);
            }

            // ...
        }
    }
}

namespace DomainLayer
{
    using System.Collections.Generic;
    using System.Linq.Expressions;
    using System.Threading.Tasks;

    public class Hotel
    {
        public int Id { get; set; }

        public string Name { get; set; }

        public string Address { get; set; }

        public decimal PricePerNight { get; set; }

        public int Stars { get; set; }

        public void ChangeName(string name)
        {
            if (string.IsNullOrWhiteSpace(name))
            {
                throw new ArgumentException("Name cannot be empty");
            }

            Name = name;
        }
    }

    public interface ISpecification<T>
    {
        Expression<Func<T, bool>> Criteria { get; }

        IQueryable<T> Apply(IQueryable<T> query);
    }

    public abstract class Specification<T> : ISpecification<T>
    {
        protected Specification(Expression<Func<T, bool>> criteria)
        {
            Criteria = criteria;
        }

        public Expression<Func<T, bool>> Criteria { get; }

        public virtual IQueryable<T> Apply(IQueryable<T> query)
        {
            query = query.Where(Criteria);

            return query;
        }
    }

    /// <summary>
    /// Specification for hotels with more than three stars
    /// </summary>
    public class HotelsWithMoreThanThreeStarsSpecification : Specification<Hotel>
    {
        public HotelsWithMoreThanThreeStarsSpecification() : base(hotel => hotel.Stars > 3)
        {
        }
    }

    /// <summary>
    /// Specification for hotels with name
    /// </summary>
    public class HotelsWithNameSpecification : Specification<Hotel>
    {
        public HotelsWithNameSpecification(string name) : base(hotel => hotel.Name == name)
        {
        }
    }

    /// <summary>
    /// Specification for hotels with more than three stars and name
    /// </summary>
    public class HotelsWithMoreThanThreeStarsAndNameSpecification : Specification<Hotel>
    {
        public HotelsWithMoreThanThreeStarsAndNameSpecification(string name) : base(
           Expression.Lambda<Func<Hotel, bool>>(
                   Expression.AndAlso(
                          new HotelsWithNameSpecification(name).Criteria.Body,
                          new HotelsWithMoreThanThreeStarsSpecification().Criteria.Body
                      )
                  ))
        {
        }
    }

    public interface IHotelRepository
    {
        Task<IEnumerable<Hotel>> GetHotelsBySpecificationAsync<TSpecification>(TSpecification specification)
            where TSpecification : ISpecification<Hotel>;
    }
}

namespace DataAccessLayer
{
    using DomainLayer;
    using Microsoft.EntityFrameworkCore;
    using System.Collections.Generic;
    using System.Threading.Tasks;


    public class HotelRepository(HotelDbContext context) : IHotelRepository
    {
        public async Task<IEnumerable<Hotel>> GetHotelsBySpecificationAsync<TSpecification>(TSpecification specification)
            where TSpecification : ISpecification<Hotel>
        {
            var query = context.Hotels.AsQueryable();

            query = specification.Apply(query);

            return await query.ToListAsync();
        }
    }

    public class HotelDbContext : DbContext
    {
        public HotelDbContext(DbContextOptions<HotelDbContext> options) : base(options) { }

        public DbSet<Hotel> Hotels { get; set; }
    }
}

Unit of Work

To coordinate the save changes across multiple repositories can be used Unit of Work.
A Unit of Work encapsulates one or more repositories and a set of operations required to successfully execute a self-contained and consistent data change.

The pattern ensures that all changes within a single business operation are committed or rolled back as a single unit.

The pattern is responsible for managing concurrency issues and employed for implementing transactions and stability patterns.

• EF Core DbContext by itself implements both the Repository and the Unit of Work patterns. Custom implementation of Unit of Work might be redundant.

namespace ApplicationLayer
{
    using DataAccessLayer;

    public class HotelService(HotelDbContext context)
    {
        public async Task ChangeHotelsNameAsync(string name, string newName)
        {
            // Get Domain objects using EF Core
            var repository = new HotelRepository(context);

            var hotels = await repository.GetByNameAsync(name);

            // Execute Domain logic
            foreach (var hotel in hotels)
            {
                hotel.ChangeName(newName);
            }

            // Saves Domain objects in one transaction
            using (var uow = new UnitOfWork(context))
            {
                foreach (var hotel in hotels)
                {
                    uow.Hotels.Value.Update(hotel);
                }

                await uow.SaveChangesAsync();
            }
        }
    }
}

namespace DomainLayer
{
    using System.Collections.Generic;
    using System.Threading.Tasks;

    public class Hotel
    {
        public int Id { get; set; }

        public string Name { get; set; }

        public string Address { get; set; }

        public decimal PricePerNight { get; set; }

        public int Stars { get; set; }

        public void ChangeName(string name)
        {
            if (string.IsNullOrWhiteSpace(name))
            {
                throw new ArgumentException("Name cannot be empty");
            }

            Name = name;
        }
    }

    public interface IHotelRepository
    {
        void Update(Hotel hotel);

        Task<IEnumerable<Hotel>> GetByNameAsync(string name);
    }

    public interface IUnitOfWork : IDisposable
    {
        public Lazy<IHotelRepository> Hotels { get; }

        Task<int> SaveChangesAsync();
    }

}


namespace DataAccessLayer
{
    using DomainLayer;
    using Microsoft.EntityFrameworkCore;
    using System.Collections.Generic;
    using System.Data;
    using System.Threading.Tasks;

    public class UnitOfWork(HotelDbContext context) : IUnitOfWork
    {
        public Lazy<IHotelRepository> Hotels => new(() => new HotelRepository(context));

        public async Task<int> SaveChangesAsync()
        {
            return await context.SaveChangesAsync();
        }

        public void Dispose() => context.Dispose();
    }


    public class HotelRepository(HotelDbContext context) : IHotelRepository
    {
        public async Task<IEnumerable<Hotel>> GetByNameAsync(string name)
        {
            return await context.Hotels.Where(h => h.Name.Contains(name)).ToListAsync();
        }

        public void Update(Hotel hotel)
        {
            context.Hotels.Update(hotel);
        }
    }

    public class HotelDbContext : DbContext
    {
        public HotelDbContext(DbContextOptions<HotelDbContext> options) : base(options) { }

        public DbSet<Hotel> Hotels { get; set; }
    }
}

How to optimize Repository pattern?

Repository queries that retrieve domain objects can be very complex and performance-heavy.
Very often, for reports or to present some information on a webpage, only a few fields from the domain object are needed.

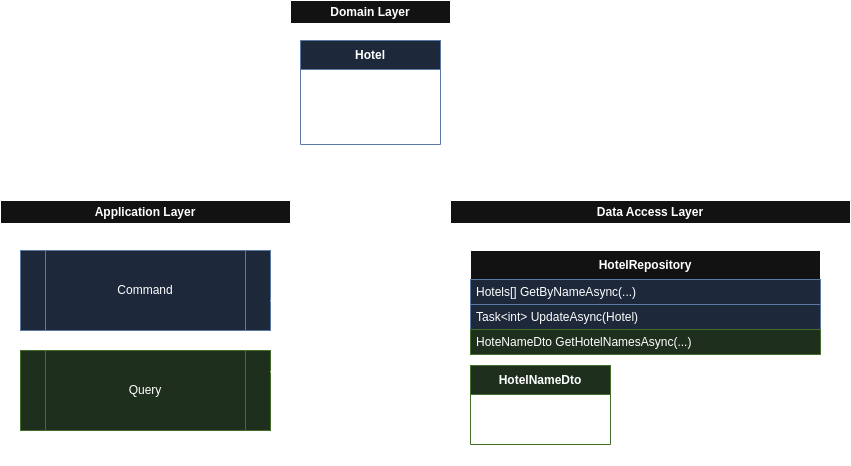

In such cases, it is good practice to split the Application Layer into Commands and Queries. Commands execute heavy business logic, while Queries are solely responsible for loading data from the Repositories.

To optimize queries to the Repository, it is perfectly acceptable to populate Repositories with methods, similar to the Data Access Object pattern, that return collections of DTOs.
This constitutes a minor violation of the pattern but can result in a significant performance boost.

It is crucial to remember that queries that return DTOs should not be used for business logic execution. Otherwise, it becomes very easy to shift from a Domain Design approach to a Transaction Script style, resulting in code that is difficult to maintain.

namespace ApplicationLayer
{
    using DataAccessLayer;
    using DomainLayer;

    // Command
    public class HotelCommands(IHotelRepository hotelRepository)
    {
        public async Task ChangeHotelsNameAsync(string name, string newName)
        {
            // Get Domain objects using EF Core
            var hotels = await hotelRepository.GetByNameAsync(name);

            // Execute Domain logic
            foreach (var hotel in hotels)
            {
                hotel.ChangeName(newName);
            }

            // Saves Domain objects
            foreach (var hotel in hotels)
            {
                await hotelRepository.UpdateAsync(hotel);
            }
        }
    }

    // Query
    public class HotelQueries(IHotelRepository hotelRepository)
    {
        public async Task<IEnumerable<HotelName>> GetHotelNamesAsync()
        {
            // Get Domain objects using EF Core
            var hotelNames = await hotelRepository.GetHotelNamesAsync();

            return hotelNames;
        }
    }
}

namespace DomainLayer
{
    using DataAccessLayer;
    using System.Collections.Generic;
    using System.Threading.Tasks;

    public class Hotel
    {
        public int Id { get; set; }

        public string Name { get; set; }

        public string Address { get; set; }

        public decimal PricePerNight { get; set; }

        public int Stars { get; set; }

        public void ChangeName(string name)
        {
            if (string.IsNullOrWhiteSpace(name))
            {
                throw new ArgumentException("Name cannot be empty");
            }

            Name = name;
        }
    }

    public interface IHotelRepository
    {
        Task<IEnumerable<Hotel>> GetByNameAsync(string name);

        Task<IEnumerable<HotelName>> GetHotelNamesAsync();

        Task<int> UpdateAsync(Hotel hotel);
    }
}


namespace DataAccessLayer
{
    using DomainLayer;
    using Microsoft.EntityFrameworkCore;
    using System.Collections.Generic;
    using System.Data;
    using System.Threading.Tasks;

    public record HotelName(int Id, string Name);

    public class HotelRepository(HotelDbContext context) : IHotelRepository
    {
        public async Task<IEnumerable<Hotel>> GetByNameAsync(string name)
        {
            return await context.Hotels.Where(h => h.Name.Contains(name)).ToListAsync();
        }

        public async Task<int> UpdateAsync(Hotel hotel)
        {
            context.Hotels.Update(hotel);

            return await context.SaveChangesAsync();
        }

        // Queries

        public async Task<IEnumerable<HotelName>> GetHotelNamesAsync()
        {
            return await context.Hotels.AsNoTracking().Select(hotel => new HotelName(hotel.Id, hotel.Name)).ToListAsync();
        }
    }

    public class HotelDbContext : DbContext
    {
        public HotelDbContext(DbContextOptions<HotelDbContext> options) : base(options) { }

        public DbSet<Hotel> Hotels { get; set; }
    }
}

Domain Driven Design

In Domain-Driven Design, the Domain Layer is built around Aggregates, which consist of Entities and Value Objects.
Aggregates are clusters of associated objects that are treated as a single unit for data consistency and change management. They have a designated "Aggregate Root" that controls access to the other objects within the cluster.

Value Objects are characterized by their value, not a unique identifier. Two Value Objects are considered equal if all their attributes are the same. Entities unlike Value Objects are defined by their unique identifier, not their attributes. Even if two Entities have the same attributes, they are considered distinct if they have different IDs.

An Aggregate Root is a special type of Entity that serves as the entry point and control center for a cluster of associated objects, known as an Aggregate.

In DDD, Repositories are responsible for persisting entire Aggregate Roots, including all associated objects, within a single transaction.

This means that the Repository should manage transactions by itself for an entire Aggregate Root and all its associated objects.

After the Repository saves the Aggregate Root, Domain Events are published if they were created.

Domain Events should be published after the Aggregate Root and its associated objects have been successfully saved to the database.

For reliably publishing Domain Events can be used Outbox pattern.

However, in practice, when building a monolith application deployed within a single process, it is acceptable to deviate slightly from the strict rule of saving each Aggregate Root in a single transaction.
This is achieved by utilizing the Unit of Work pattern. Before saving an Aggregate, Domain Events are published. These Domain Events are then handled by other Aggregate Roots, potentially triggering a cascade of events and subsequent updates. Finally, the Unit of Work commits the transaction, ensuring that all changes are persisted atomically.
